PL2035

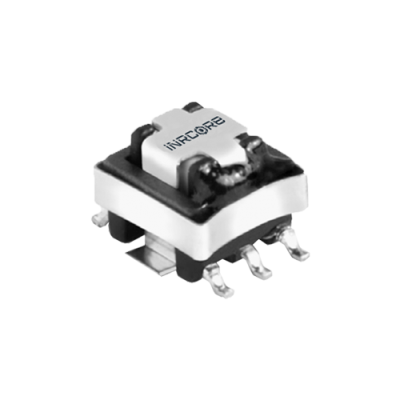

SMT Current Sense Transformer

PL2035
Datasheet
For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL2035T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 0.34 g
Dimensions 8.38 × 7.21 × 5.5 mm
Mounting

SMT
Construction Type

SMT Toroid
Turns Ratio

1:50
DCR MAX (mΩ) Primary

0.75
DCR MAX (mΩ) Secondary

1500
Rated Current (A)

20
Secondary Inductance (mH)

0.5
HiPot (VRMS)

500
Moisture Sensitivity Level

1
Operating Temperature

-55°C to +125°C
Storage Temperature

-55°C to +125°C
MAX Reflow Temperature (℃)

235
Finish

Tin/Lead (Sn63/Pb37)
Packaging

Bulk
RoHS Compliant

No
Qualified Products List

No
Features

Pick & Place

The iNRCORE PL2035 SMT Current Sense Transformer offers a compact and efficient solution for current sensing applications. With a 0.34g weight, it provides accurate current measurement in a small form factor. Its key features include a 1:50 turns ratio, a 0.75 mΩ primary DCR, and a 1500 mΩ secondary DCR. The transformer is designed for SMT mounting and operates within a temperature range of -55°C to +125°C. The product offers a high isolation voltage of 500V and is suitable for various power applications.
