PL3252

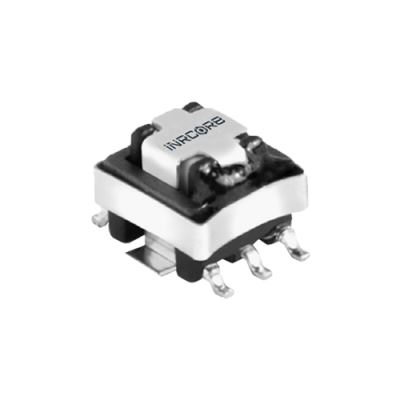

SMT Current Sense Transformer

PL3252
Datasheet
For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL3252T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 5.5 g
Dimensions 8.38 × 7.21 × 5.5 mm
Mounting

SMT
Construction Type

SMT EE5
Turns Ratio

1:40
DCR MAX (mΩ) Primary

6
DCR MAX (mΩ) Secondary

1140
Rated Current (A)

1000%
HiPot (VRMS)

500
Frequency Range (MHz)

50kHz – 1MHz
Moisture Sensitivity Level

1
Operating Temperature

-55°C to +130°C
Storage Temperature

-55°C to +130°C
MAX Reflow Temperature (℃)

235
Finish

Tin/Lead (Sn63/Pb37)
Packaging

Bulk
RoHS Compliant

No
Qualified Products List

No

The PL3252 SMT Current Sense Transformer, manufactured by iNRCORE, offers a compact and efficient solution for current sensing applications. Its design includes a turns ratio of 1:40 and a secondary inductance of 0.32 mH, enabling precise current measurement in a variety of power applications. The transformer is built with SMT EE5 construction and has a frequency range of 50kHz – 1MHz. The product’s features include a 500 V isolation voltage, and an operating temperature range of -55°C to +130°C, ensuring reliable performance in diverse environments.

NOTE: Data/Specifications are subject to change without notice.
