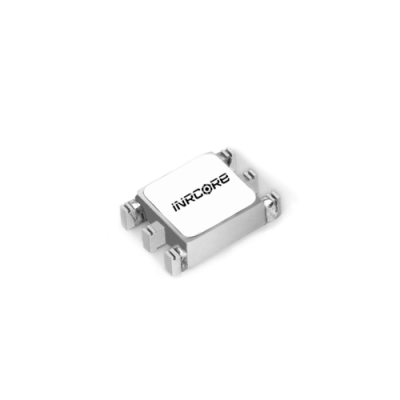

PL2073NL

SMT Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL2073NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 0.23 g
Dimensions 8.64 × 6.73 × 3.56 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1:01:01

Isolation Voltage

1500

DCR MAX (mΩ) Primary

0.85

DCR MAX (mΩ) Secondary

0.85

Primary Inductance (µH)

43700%

Leakage Inductance MAX (μH)

0.85

Voltage-time Product (V*uSec)

20

Moisture Sensitivity Level

3

Operating Temperature

-55°C to +125°C

Storage Temperature

-55°C to +125°C

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Qualified Products List

No

Height (mm)

3.56

This SMT gate drive transformer, designed for surface mount applications, offers reliable performance with a 1:01:01 turns ratio and 1500V isolation. It features a compact design with a height of 3.56mm and has a voltage-time product of 20 V*uSec, making it suitable for various power management needs, with an operating and storage temperature range from -55°C to +125°C.

NOTE: Data/Specifications are subject to change without notice.
