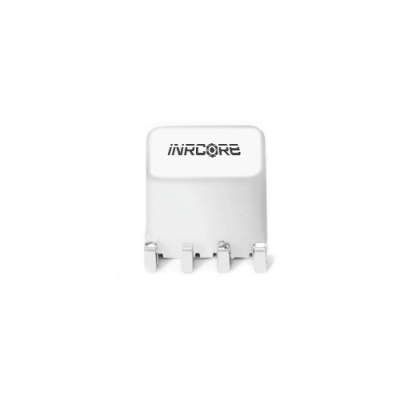

PL2973NL

Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL2973NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 8.64 × 9.02 × 7.62 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1:01

Isolation Voltage

1500

DCR MAX (mΩ) Primary

0.91

DCR MAX (mΩ) Secondary

0.91

Primary Inductance (µH)

120000%

Leakage Inductance MAX (μH)

0.5

Voltage-time Product (V*uSec)

27.2

Operating Frequency (MHz)

50kHz+

Moisture Sensitivity Level

1

Operating Temperature

-55°C to +125°C

Storage Temperature

-55°C to +125°C

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Qualified Products List

No

Height (mm)

7.62

The PL2973NL Gate Drive Transformer from iNRCORE offers reliable performance with a 1:01 turns ratio and 1500V isolation voltage. Designed for SMT applications, this transformer ensures efficient operation with a 50kHz+ operating frequency and a wide operating temperature range of -55°C to +125°C. Its compact design, with dimensions of 8.64mm length, 9.02mm width, and 7.62mm height, makes it suitable for various power applications.
