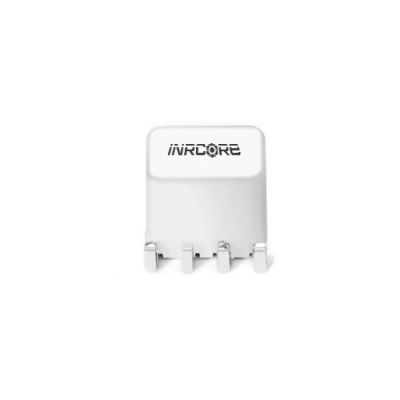

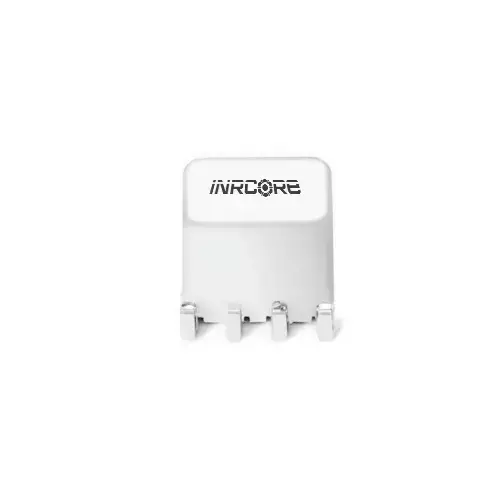

PL3172NL

Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL3172NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 0.8 g
Dimensions 8.64 × 9.02 × 7.62 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1:01

Isolation Voltage

1500

DCR MAX (mΩ) Primary

0.91

DCR MAX (mΩ) Secondary

91%

Primary Inductance (µH)

1200

Leakage Inductance MAX (μH)

0.5

HiPot (VRMS)

1500

Voltage-time Product (V*uSec)

27.2

Operating Frequency (MHz)

50kHz – 600kHz

Moisture Sensitivity Level

3

Operating Temperature

-55°C to +130°C

Storage Temperature

-55°C to +130°C

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Qualified Products List

No

Height (mm)

7.62

The PL3172NL Gate Drive Transformer from iNRCORE offers reliable performance in a compact SMT package. Designed with a 1:01 turns ratio, this transformer provides 1500V isolation and features a leakage inductance of 0.5μH. With an operating frequency range of 50kHz – 600kHz, and a storage temperature range of -55°C to +130°C, this component is suitable for various demanding applications.

NOTE: Data/Specifications are subject to change without notice.
