PL3212NL

High Isolation Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL3212NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 20.57 × 12.19 × 19.05 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1:01:01

Isolation Voltage

3000

DCR MAX (mΩ) Primary

80

DCR MAX (mΩ) Secondary

7200%

Primary Inductance (µH)

450

Leakage Inductance MAX (μH)

0.5

HiPot (VRMS)

1500

Voltage-time Product (V*uSec)

95

Operating Frequency (MHz)

50kHz – 300kHz

Storage Temperature

-40°C to +125°C

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Qualified Products List

No

Height (mm)

19.05

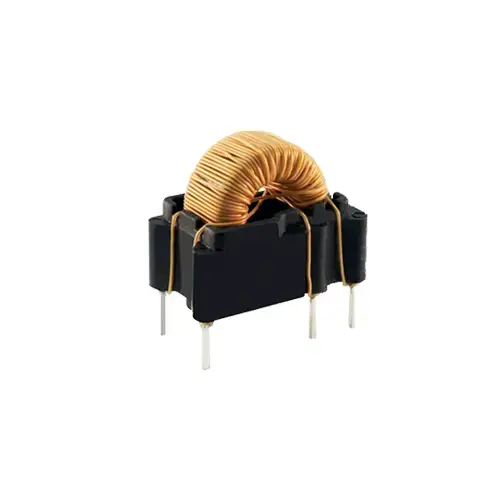

The PL3212NL is a high isolation gate drive transformer engineered for robust performance in power applications. Its SMT Toroid construction and 3000V isolation voltage ensure reliable and efficient operation across a wide operating frequency range of 50kHz to 300kHz. With a low leakage inductance of 0.5μH and a voltage-time product of 95 V*μSec, this transformer is designed for precision and stability in demanding environments, offering a durable solution with Sn100 finish and RoHS compliance for long-term integration.
