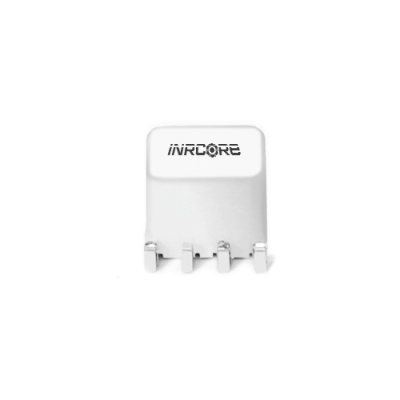

PL3445NL

Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL3445NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 9.02 × 8.34 × 7.62 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1

Isolation Voltage

1500

DCR MAX (mΩ) Primary

2.6

DCR MAX (mΩ) Secondary

260%

Primary Inductance (µH)

7200

Leakage Inductance MAX (μH)

2

Voltage-time Product (V*uSec)

75

Operating Frequency (MHz)

50kHz+

Moisture Sensitivity Level

1

Operating Temperature

-40°C to +125°C

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Qualified Products List

No

Height (mm)

7.62

The PL3445NL is a compact SMT gate drive transformer engineered to provide reliable signal isolation and efficient power transfer for demanding applications. Its robust design and precise turns ratio contribute to stable performance across a wide operating temperature range of -40°C to +125°C, ensuring consistent operation in various environmental conditions. With a high isolation voltage of 1500 and low DCR, this transformer minimizes energy loss and enhances the overall efficiency of power conversion systems.

NOTE: Data/Specifications are subject to change without notice.
