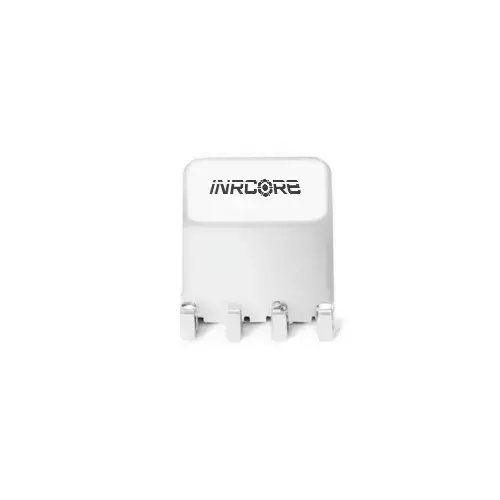

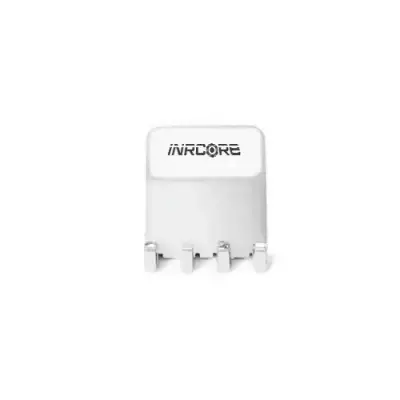

PL3445NLT

Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL3445NLTT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 9.02 × 8.34 × 7.62 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1

Isolation Voltage

1500

DCR MAX (mΩ) Primary

2.6

DCR MAX (mΩ) Secondary

260%

Primary Inductance (µH)

7200

Leakage Inductance MAX (μH)

2

Voltage-time Product (V*uSec)

75

Operating Frequency (MHz)

50kHz+

Moisture Sensitivity Level

1

Operating Temperature

-40°C to +125°C

Finish

Sn100

Packaging

T&R

RoHS Compliant

Yes

Qualified Products List

No

Height (mm)

7.62

The Gate Drive Transformer, model PL3445NLT, offers reliable performance in power applications. With a turns ratio of 1:1 and an isolation voltage of 1500, it ensures safety and efficient power delivery. Its compact design, featuring a height of 7.62 mm, makes it suitable for space-constrained applications. This transformer is a valuable component for various electronic systems, offering dependable operation within a wide operating temperature range.
