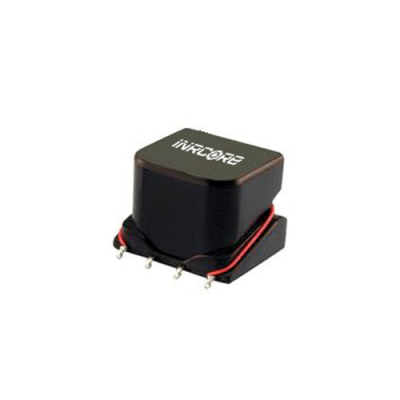

Gate Drive Transformer
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Dimensions | 16.5 × 14.15 × 14.2 mm |
|---|---|
| Mounting | SMT |
| Construction Type | SMT Toroid |
| Turns Ratio | 2 |
| Isolation Voltage | 4000 |
| DCR MAX (mΩ) Primary | 2.2 |
| DCR MAX (mΩ) Secondary | 1.6 |
| Primary Inductance (µH) | 150000% |
| Leakage Inductance MAX (μH) | 8 |
| Voltage-time Product (V*uSec) | 375 |
| Moisture Sensitivity Level | 1 |
| Storage Temperature | -55°C to +130°C |
| Finish | Sn100 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Qualified Products List | No |
| Height (mm) | 14.2 |
The provided information identifies this as a “Gate Drive Transformer,” but your request states it is a “type of inductor.” Could you please clarify which is correct, or if this is an inductor, what type of inductor it is?
NOTE: Data/Specifications are subject to change without notice.
