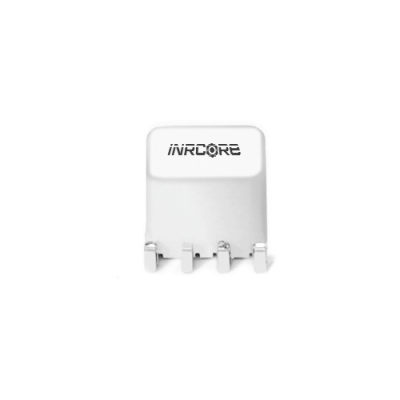

X-1622NL

Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. X-1622NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 9.02 × 8.64 × 7.62 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1:01:01

DWV (Vrms)

1500

DCR MAX (mΩ) Primary

1600

DCR MAX (mΩ) Secondary

1600

Primary Inductance (µH)

1400

Leakage Inductance MAX (μH)

1.5

Voltage-time Product (V*uSec)

60

Moisture Sensitivity Level

3

Operating Temperature

-55°C to +125°C

Storage Temperature

-55°C to +125°C

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Qualified Products List

No

Height (mm)

7.62

The X-1622NL Gate Drive Transformer from iNRCORE offers a robust solution for power applications, featuring SMT Toroid construction and a 1:01:01 turns ratio. Designed for reliability, it includes a DWV of 1500Vrms and operates across a wide temperature range of -55°C to +125°C, ensuring consistent performance in demanding environments. Its attributes, such as low leakage inductance and high voltage-time product, contribute to efficient power transfer and signal integrity.
