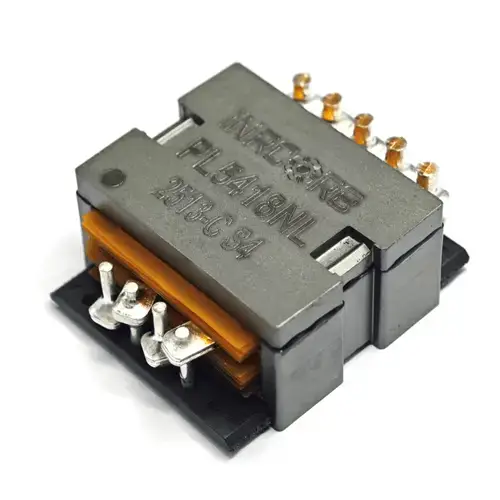

High Frequency Planar Inductor
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Dimensions | 29.46 × 26.67 × 11.9 mm |
|---|---|
| Mounting | SMT |
| Turns Ratio | 1, 0.50 |
| Leakage Inductance MAX (μH) | 0.3 |
| Rated Power (W) | 50000% |
| Frequency Range (MHz) | 200kHz – 400kHz |
| Moisture Sensitivity Level | 1 |
| Operating Temperature | -40°C to +125°C |
| Finish | Sn100 |
| Packaging | T&R |
| RoHS Compliant | Yes |
| Height (mm) | 11.9 |
| Features | High Frequency |
NOTE: Data/Specifications are subject to change without notice.
