High Frequency Planar Transformer
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Dimensions | 23.37 × 21.59 × 9.7 mm |
|---|---|
| Mounting | SMT |
| Turns Ratio | 5TPri:6TPri:2TSec:1TSec |
| DCR MAX (mΩ) Primary | 20 |
| DCR MAX (mΩ) Secondary | 1.75 |
| Primary Inductance (µH) | 290 |
| Leakage Inductance MAX (μH) | 0.5 |
| Rated Power (W) | 1.40E+02 |
| Frequency Range (MHz) | 200kHz – 700kHz |
| Moisture Sensitivity Level | 1 |
| Operating Temperature | -40°C to +125°C |
| Finish | Sn100 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Grade | Industrial |
| Features | High Frequency |

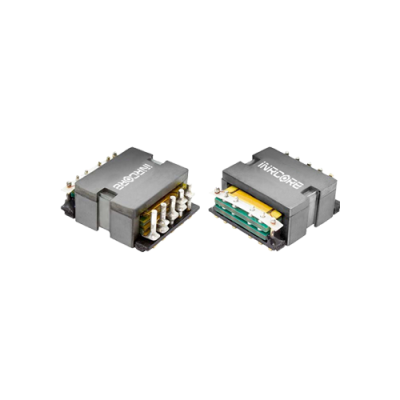

The R8314NL high-frequency planar transformer, manufactured by iNRCORE, offers a compact solution for power conversion with its SMT mounting and a height of 9.7mm. It features a turns ratio of 5TPri:6TPri:2TSec:1TSec, a primary inductance of 290µH, and a frequency range of 200kHz – 700kHz, making it suitable for various applications. The transformer is RoHS compliant and designed for industrial-grade environments.
NOTE: Data/Specifications are subject to change without notice.
