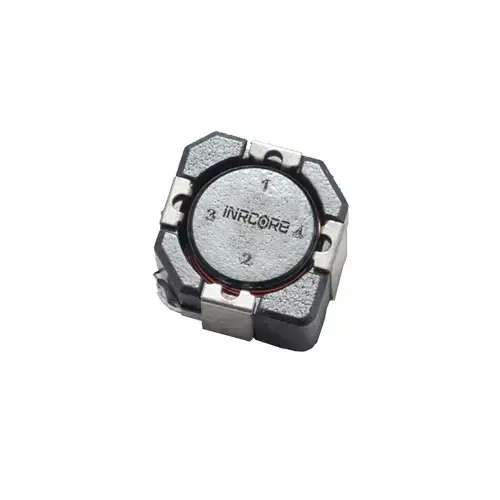

PL8901NL

SMT Power Inductor

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL8901NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 4 g
Dimensions 10.5 × 10.5 × 7.1 mm
Mounting

SMT

Construction Type

SHLD DRUM CORE

Inductance (µH)

0.8

Rated Current (A)

11

DCR TYP (mΩ)

3.5

DCR MAX (mΩ)

4

Saturation Current TYP (A)

14

Heating Current (A)

11

Moisture Sensitivity Level

1

Operating Temperature

-40°C to +130°C

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Height (mm)

7.1

The PL8901NL is a robust SMT power inductor from iNRCORE, offering reliable performance with a 0.8 µH inductance and a high-rated current of 11A. Its shielded drum core construction ensures stability, while its -40°C to +130°C operating temperature range and Sn100 finish provide durability for diverse applications. This RoHS compliant component, supplied in bulk, offers consistent electrical characteristics with a typical DCR of 3.5 mΩ and a saturation current of 14A.

NOTE: Data/Specifications are subject to change without notice.
