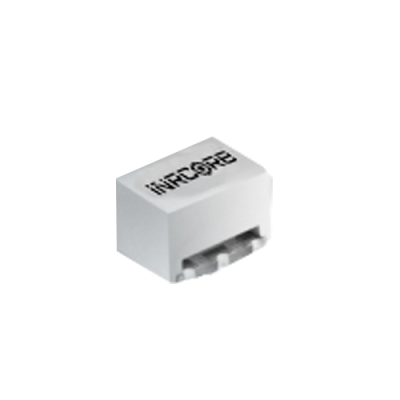

T-050100

High Frequency SMT Balun Adapter

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. T-050100T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 7.874 × 6.477 × 5.334 mm
Mounting

SMT

Number of Channels

Single

Data Rate (Mbps)

1485

Unbalanced Impedance (Ω)

50

Balanced Impedance (Ω)

100

Insertion Loss MAX (dB)

2

Return Loss (dB)

12

Operating Temperature

-40°C to +85°C

Moisture Sensitivity Level

3

RoHS Compliant

No

Packaging

Bulk

The T-050100 high-frequency SMT balun adapter from iNRCORE offers a single-channel solution for signal balancing, with a data rate up to 1485 Mbps. Its compact design, with dimensions of 7.874mm in length, 6.477mm in width, and 5.334mm in height, makes it suitable for space-constrained applications. This adapter ensures reliable performance within an operating temperature range of -40°C to +85°C.

NOTE: Data/Specifications are subject to change without notice.
