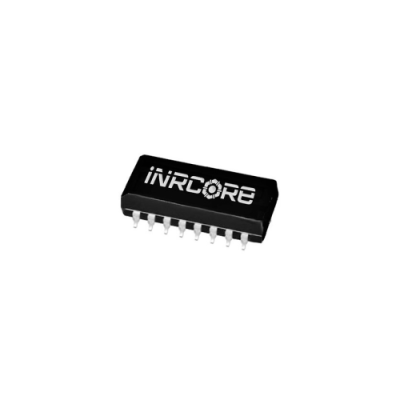

T-1485SCTNL

CopperheadTM High Speed Dual Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. T-1485SCTNLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 1 g
Dimensions 12.95 × 7.62 × 4.57 mm
Mounting

SMT

Turns Ratio

1CT:1CT

Number of Channels

Dual

Data Rate (Mbps)

1485

Primary Inductance (µH)

3.75

Rise Time MAX (nSec)

0.27

DCR MAX (mΩ)

0.2

HiPot (VRMS)

1500

Insertion Loss MAX (dB)

2

Moisture Sensitivity Level

3

RoHS Compliant

Yes

Operating Temperature

-55°C to +125°C

Packaging

Bulk

Height (mm)

4.57

This Copperhead™ High Speed Dual Transformer, T-1485SCTNL, offers reliable signal data isolation with a 1CT:1CT turns ratio and dual channels, supporting data rates up to 1485 Mbps. It features SMT mounting, a primary inductance of 3.75 µH, and an impressive isolation voltage of 1500 VRMS, operating effectively across a broad temperature range of -55°C to +125°C.

NOTE: Data/Specifications are subject to change without notice.
