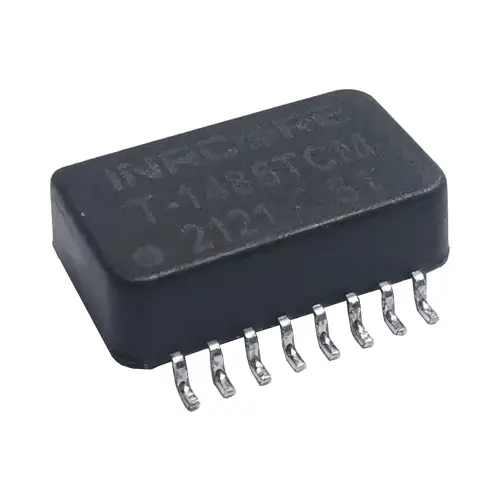

CopperheadTM High Speed Dual Transformer & CMC Module
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Weight | 1 g |
|---|---|
| Dimensions | 12.95 × 7.62 × 4.57 mm |
| Mounting | SMT |
| Turns Ratio | 1:01 |
| Number of Channels | Dual |
| Data Rate (Mbps) | 1485 |
| Primary Inductance (µH) | 2.5 |
| DCR MAX (mΩ) | 250 |
| HiPot (VRMS) | 1500 |
| Moisture Sensitivity Level | 3 |
| Finish | Sn100 |
| RoHS Compliant | Yes |
| Operating Temperature | -55°C to +125°C |
| Storage Temperature | -55°C to +125°C |
| Packaging | Bulk |
| Height (mm) | 4.57 |
| Manufacturer | iNRCORE |
| Brand | iNRCORE |
The T-1485TCMNL Copperhead High Speed Dual Transformer & CMC Module is a reliable inductor designed for data isolation, offering a 1:01 turns ratio across dual channels with a 1485 Mbps data rate. Its robust construction ensures dependable performance across a wide operating temperature range (-55°C to +125°C), and it is RoHS compliant, providing essential functionality for signal integrity and isolation in demanding applications.
NOTE: Data/Specifications are subject to change without notice.
