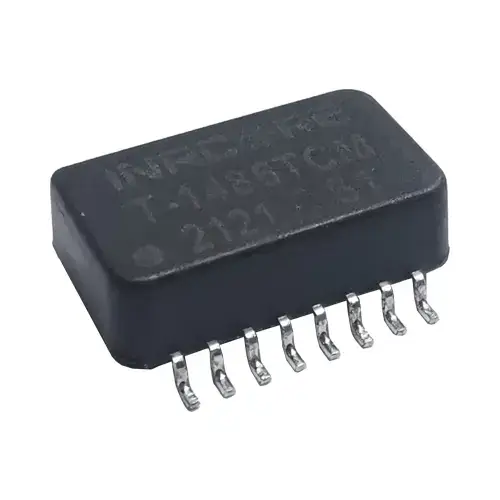

T-1485TCMNLT

CopperheadTM High Speed Dual Transformer & CMC Module

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. T-1485TCMNLTT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 1 g
Dimensions 12.95 × 7.62 × 4.57 mm
Mounting

SMT

Turns Ratio

1:01

Number of Channels

Dual

Data Rate (Mbps)

1485

Primary Inductance (µH)

2.5

DCR MAX (mΩ)

250

HiPot (VRMS)

1500

Moisture Sensitivity Level

3

Finish

Sn100

RoHS Compliant

Yes

Operating Temperature

-55°C to +125°C

Storage Temperature

-55°C to +125°C

Packaging

T&R

Height (mm)

4.57

Manufacturer

iNRCORE

Brand

iNRCORE

The Copperhead™ High Speed Dual Transformer & CMC Module from iNRCORE offers exceptional performance in signal and data isolation. This component is designed for SMT mounting and features a 1:01 turns ratio, dual channels, and a data rate of 1485 Mbps. With an inductance of 2.5 µH and a DCR MAX of 250 mΩ, it ensures reliable operation. The product is designed for various operating environments with an operating temperature range of -55°C to +125°C.

NOTE: Data/Specifications are subject to change without notice.
