1000B-5003X

10/100/1000 BASE-T Single & Dual Port Transformer Module

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 1000B-5003XT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 27.94 × 7.62 × 8.64 mm
Mounting

SMT

Number of Channels

Dual

Configuration RX

C, T

Configuration TX

C, T

Data Rate (Mbps)

1000

Isolation Voltage

1500

Package

50-Pin

Operating Temperature

-55°C to +125°C

Storage Temperature

-55°C to +125°C

Finish

Tin/Lead (Sn63/Pb37)

Moisture Sensitivity Level

3

RoHS Compliant

No

Packaging

Bulk

Grade

Mil-Aero

PoE Rating

N/A

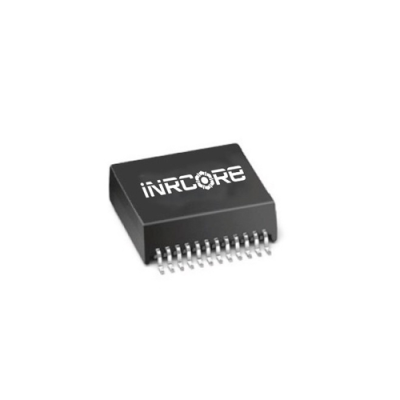

The 1000B-5003X from iNRCORE is a 10/100/1000 BASE-T Single & Dual Port Transformer Module. This surface-mount (SMT) component features dual channels and supports both C and T configurations for RX and TX, with a data rate of 1000 Mbps. It offers an isolation voltage of 1500 and comes in a 50-Pin package, operating across a wide temperature range of -55°C to +125°C. With a Tin/Lead (Sn63/Pb37) finish and a Moisture Sensitivity Level of 3, this Mil-Aero grade product is supplied in bulk packaging.

NOTE: Data/Specifications are subject to change without notice.
