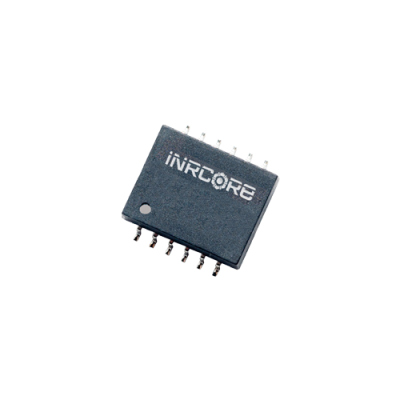

100B-1001XNL

10/100 BASE-TX Single Port Transformer Module

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 100B-1001XNLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 1.89 g
Dimensions 15.24 × 11.94 × 5.08 mm
Mounting

SMT

Number of Channels

Single

Configuration RX

C, T

Configuration TX

C, T

Data Rate (Mbps)

100

Isolation Voltage

1500

Package

12-Pin

Operating Temperature

-55°C to +125°C

Storage Temperature

-55°C to +125°C

Finish

Sn100

Moisture Sensitivity Level

3

RoHS Compliant

Yes

Packaging

Bulk

Grade

Mil-Aero

PoE Rating

N/A

The 100B-1001XNL is a 10/100 BASE-TX Single Port Transformer Module from iNRCORE, designed for optimal performance in various applications. This SMT-mounted component features a single channel with C, T configurations for both RX and TX, a data rate of 100 Mbps, and an isolation voltage of 1500V. Encased in a 12-Pin package with Sn100 finish, it operates efficiently across a wide temperature range of -55°C to +125°C. With a moisture sensitivity level of 3 and RoHS compliance, this Mil-Aero grade module (100B-1001XNL) is ideal for demanding environments.

NOTE: Data/Specifications are subject to change without notice.
