100B-1063NL

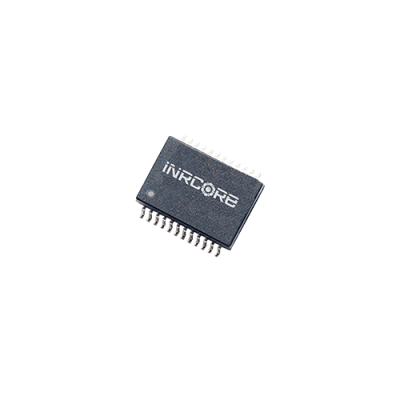

100 Base-T Single & Dual Port Transformers

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 100B-1063NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 12.95 × 7.11 × 6.22 mm
Mounting

SMT

Number of Channels

Dual

Configuration RX

C, S, T

Configuration TX

C, S, T

Data Rate (Mbps)

100

Isolation Voltage

1500

Insertion Loss MAX (dB)

1.2

Power MAX (W)

30

Rated Current (A)

0.6

Package

24-Pin

Operating Temperature

-40°C to +85°C

Storage Temperature

-55°C to +125°C

Finish

Sn100

Moisture Sensitivity Level

3

RoHS Compliant

Yes

Packaging

Bulk

Grade

Mil-Aero

PoE Rating

N/A

The 100B-1063NL from iNRCORE is a 100 Base-T Single & Dual Port Transformer designed for demanding applications. This SMT-mountable component features dual channels with configurable RX and TX (C, S, T) for versatile signal integration. It supports a data rate of 100 Mbps, offers 1500V isolation voltage, and has a maximum insertion loss of 1.2 dB. With a power rating of 30W and a rated current of 0.6A, this 24-pin package operates from -40°C to +85°C and is RoHS compliant with a Sn100 finish, making it ideal for Mil-Aero grade systems.

NOTE: Data/Specifications are subject to change without notice.
