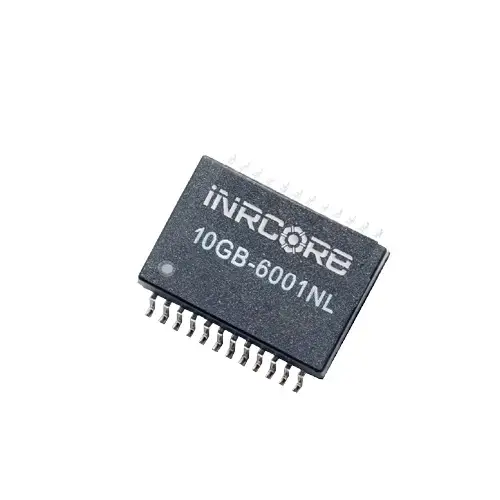

10GB-6001T

10G Base-T Transformer Module

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. 10GB-6001TT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 17.78 × 12.45 × 5.97 mm
Mounting

SMT

Configuration RX

C, T

Configuration TX

C, T

Data Rate (Mbps)

10000

Package

24-Pin

Insertion Loss MAX (dB)

1.8, 3

Return Loss (dB)

8, 10, 14, 18, 22, 24

Crosstalk (dB)

25, 35, 42, 65

DM to CM Rejection Ratio (dB) MIN

22, 30, 40

Operating Temperature

-40°C to +85°C

Finish

Tin/Lead (Sn63/Pb37)

Moisture Sensitivity Level

3

RoHS Compliant

No

Packaging

T&R

Grade

Mil-Aero

PoE Rating

N/A

The 10G Base-T Transformer Module (10GB-6001T) from iNRCORE offers a high-performance solution for Ethernet transformer applications. This module provides reliable data transfer at a 10000 Mbps data rate. Its compact design, with dimensions of 17.78mm in length, 12.45mm in width, and 5.97mm in height, makes it suitable for various space-constrained applications. With features like a wide operating temperature range and compliance with RoHS standards, the 10GB-6001T ensures consistent performance and environmental responsibility.

NOTE: Data/Specifications are subject to change without notice.
