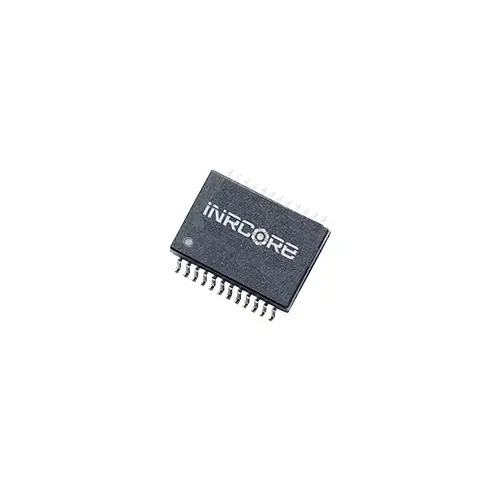

X-1644FNLT

10/100 BASE-TX Single Port Transformer Module

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. X-1644FNLTT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 15.49 × 12.95 × 7.87 mm
Mounting

SMT

Number of Channels

Single

Configuration RX

T

Configuration TX

T

Data Rate (Mbps)

100

Package

20-Pin

Insertion Loss MAX (dB)

1, 2, 2.5, 3.5

Return Loss (dB)

2, 3, 5, 6, 9, 18

Crosstalk (dB)

25, 27, 30, 45

DM to CM Rejection Ratio (dB) MIN

25, 30, 32, 36

Operating Temperature

-40°C to +85°C

Storage Temperature

-55°C to +125°C

Finish

Sn100

Moisture Sensitivity Level

3

RoHS Compliant

Yes

Packaging

T&R

Grade

Mil-Aero

PoE Rating

N/A

The X-1644FNLT is a 10/100 BASE-TX Single Port Transformer Module designed for Ethernet applications. It features a small form factor with dimensions of 15.49mm in length, 12.95mm in width, and 7.87mm in height. This module offers a data rate of 100 Mbps, supports SMT mounting, and operates within a temperature range of -40°C to +85°C. It is manufactured by iNRCORE and is RoHS compliant.

NOTE: Data/Specifications are subject to change without notice.
