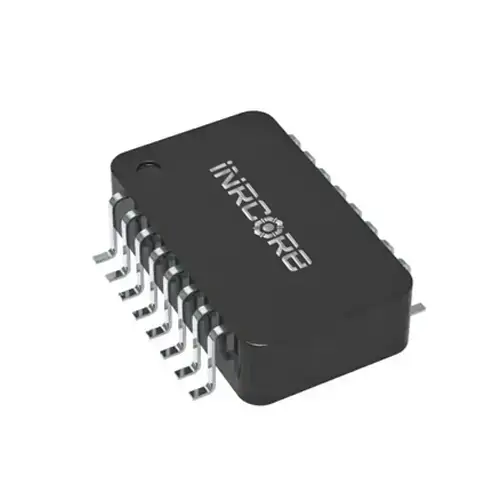

TM266HCB5

Copperhead Series Fibre Channel Transceiver Line Interface Module

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. TM266HCB5T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 7.62 × 12.7 × 6.35 mm
Mounting

SMT

Package

Gull-Wing Half DIP 16-Pin

Construction Type

1/4 Speed Fibre Channel

Input Data Voltage MIN (V)

1.35

Input Data Voltage MAX (V)

1.88

Input Voltage Diff MIN (mV)

15000%

Input Voltage Diff TYP (mV)

800

Input Voltage Diff MAX (mV)

1200

Data Rate (Mbps)

265.625

Transmit Jitter TYP (pS)

1000

Transmit Jitter MAX (pS)

2000

Operating Temperature

-55°C to +125°C

RoHS Compliant

No

Packaging

Bulk

Grade

COTS

The TM266HCB5 Copperhead Series Fibre Channel Transceiver Line Interface Module by iNRCORE provides reliable signal transmission for 1/4 speed Fibre Channel applications. Designed for surface mount installation with a Gull-Wing Half DIP 16-Pin package, this module offers a data rate of 265.625 Mbps and maintains stable performance across a wide operating temperature range of -55°C to +125°C, ensuring robust operation in diverse environments.

NOTE: Data/Specifications are subject to change without notice.
