PL1241

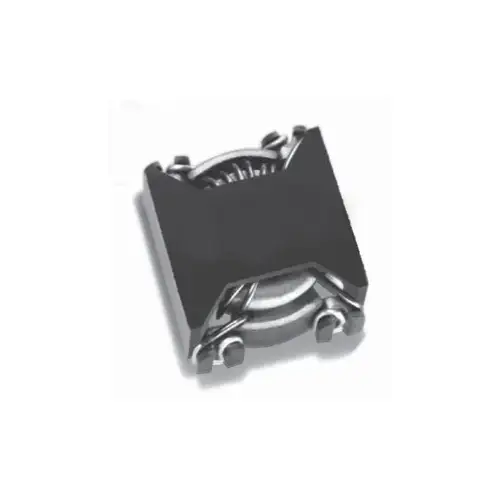

The PL1241 common mode choke from iNRCORE offers a compact SMT solution with a high inductance of 768 µH. Designed for DC/DC converters, this component ensures reliable performance within a -40°C to +120°C temperature range. It features a low DCR of 0.04 mohms and a rated current of 4.7A, making it suitable for various power applications. The tube packaging and RoHS compliance further enhance its usability and environmental considerations.

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL1241T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 19.56 × 17.02 × 9.9 mm
Mounting

SMT

Construction Type

SMT Toroid

Inductance (µH)

768

DCR (mohms)

0.04

Rated Current (A)

4.7

Turns Ratio

1

DWV (Vrms)

620%

Moisture Sensitivity Level

1

Operating Temperature

-40°C to +120°C

Finish

Tin/Lead (Sn63/Pb37)

Packaging

Tube

RoHS Compliant

No

Qualified Products List

No

Applications

DC/DC Converters

Features

Pick & Place Compatible

NOTE: Data/Specifications are subject to change without notice.
