Common Mode Choke
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Weight | 0.6 g |
|---|---|
| Dimensions | 7.62 × 6.86 × 6.35 mm |
| Mounting | SMT |
| Construction Type | SMT Toroid |
| DCR (mohms) | 150 |
| Inductance (µH) | 35 |
| MAX Reflow Temperature (℃) | 235 |
| Moisture Sensitivity Level | 3 |
| Operating Temperature | -55°C to +125°C |
| Storage Temperature | -55°C to +125°C |
| Finish | Sn100 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Qualified Products List | No |
| Applications | Telecomm |
| Features | Extended Temperature Range |

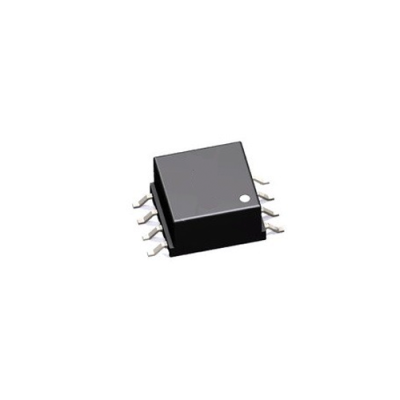

The PL1930NL Common Mode Choke, manufactured by iNRCORE, offers a compact SMT Toroid design, ideal for telecommunications applications. It features a DCR of 150 mohms and an inductance of 35 µH, operating efficiently within a -55°C to +125°C temperature range. This component is designed with an extended temperature range and is RoHS compliant.
NOTE: Data/Specifications are subject to change without notice.
