For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL8213NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

PL8213NL

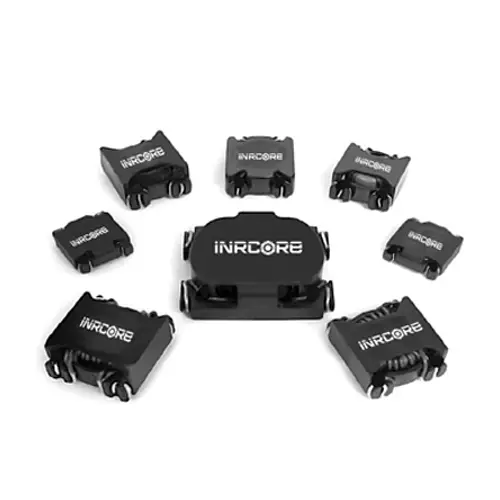

SMT Common Mode Choke – SLIC Series

Weight 3 g
Dimensions 13 × 13 × 8.6 mm
Mounting

SMT

Construction Type

SMT Toroid

Package

Polecat

Inductance (µH)

800

DCR (mohms)

30

Rated Current (A)

3

DWV (Vrms)

1500

Moisture Sensitivity Level

1

Operating Temperature

-55°C to +130°C

Storage Temperature

-55°C to +130°C

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Qualified Products List

No

The SMT Common Mode Choke – SLIC Series (PL8213NL) offers a compact and efficient solution for common mode noise suppression. With a high inductance of 800 µH and a low DCR of 30 mohms, it effectively filters out unwanted noise while minimizing power loss. This inductor is designed for surface mount technology, ensuring easy integration into your circuit, and is built to withstand harsh environments with an operating temperature range of -55°C to +130°C.

NOTE: Data/Specifications are subject to change without notice.
