For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL8801NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

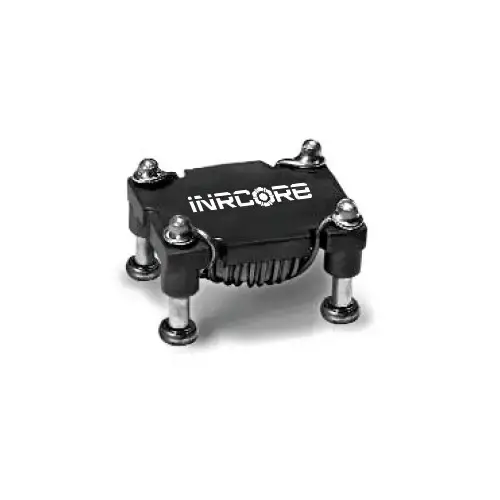

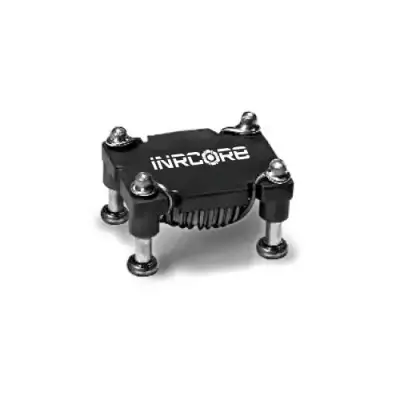

PL8801NL

Common Mode Choke

Weight 2.5 g
Dimensions 18.42 × 14.61 × 9.65 mm
Mounting

SMT

Construction Type

SMT Toroid

Package

POGO 40

Inductance (µH)

1500

Rated Current (A)

1.5

DCR (mohms)

60

SRF (MHz)

2

Operating Temperature

-55°C to +130°C

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Qualified Products List

No

The PL8801NL Common Mode Choke from iNRCORE offers reliable performance in power applications. With a 1500 µH inductance and 1.5A rated current, it effectively filters out common-mode noise. The SMT Toroid construction ensures efficient performance within a small form factor, and the Sn100 finish enhances durability. This product is ideal for various applications requiring robust noise suppression.

NOTE: Data/Specifications are subject to change without notice.
