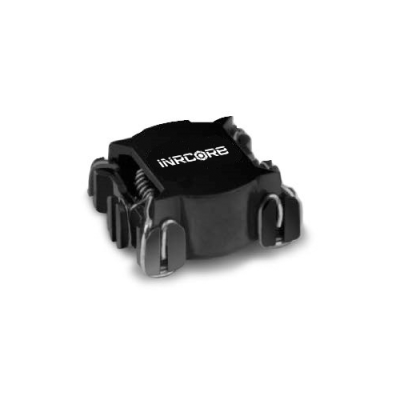

PL1170NL

SMT Current Sense Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL1170NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 14.605 × 12.573 × 7.112 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

100

DCR (mohms)

2.3, 930

Rated Current (A)

15

HiPot (VRMS)

50000%

Frequency Range (MHz)

50kHz – 500kHz

Moisture Sensitivity Level

1

Operating Temperature

-40°C to +130°C

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Qualified Products List

No

The SMT Current Sense Transformer (PL1170NL) from iNRCORE is designed for current sensing applications. This component offers a turns ratio of 100, a rated current of 15A, and operates within a frequency range of 50kHz to 500kHz. It is RoHS compliant, and has an operating temperature range of -40°C to +130°C. The transformer has a height of 7.1mm and is packaged in bulk.
