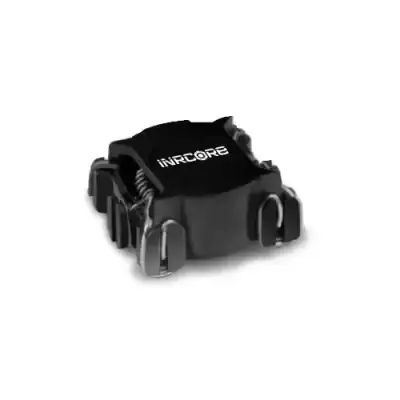

PL1170NLT

SMT Current Sense Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL1170NLTT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 14.605 × 12.573 × 7.112 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

100

DCR (mohms)

2.3, 930

Rated Current (A)

15

HiPot (VRMS)

50000%

Frequency Range (MHz)

50kHz – 500kHz

Moisture Sensitivity Level

1

Operating Temperature

-40°C to +130°C

Finish

Sn100

Packaging

T&R

RoHS Compliant

Yes

Qualified Products List

No

This SMT Current Sense Transformer (PL1170NLT) provides precise current sensing with a 1:100 turns ratio and low DCR, ensuring accurate measurements. Its robust construction with 500V isolation and HiPot ratings, along with a wide operating frequency range, makes it suitable for demanding applications requiring reliable performance across various environmental conditions.
