PL2035NL

SMT Current Sense Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL2035NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 0.34 g
Dimensions 8.38 × 7.21 × 5.5 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1:50

DCR MAX (mΩ) Primary

0.75

DCR MAX (mΩ) Secondary

1500

Rated Current (A)

20

Secondary Inductance (mH)

0.5

HiPot (VRMS)

500

Moisture Sensitivity Level

1

Operating Temperature

-55°C to +125°C

Storage Temperature

-55°C to +125°C

MAX Reflow Temperature (℃)

235

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Qualified Products List

No

Features

Pick & Place

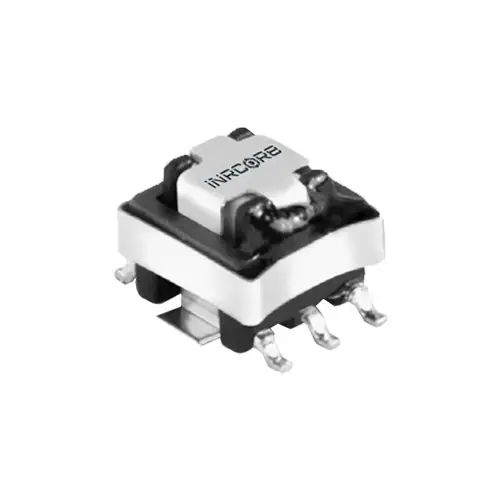

The PL2035NL SMT Current Sense Transformer, manufactured by iNRCORE, offers a compact and efficient solution for current sensing applications. With a turns ratio of 1:50 and a rated current of 20A, this transformer ensures accurate current measurement in a variety of power applications. Its SMT design and wide operating temperature range of -55°C to +125°C make it suitable for diverse environments.
