PL1903

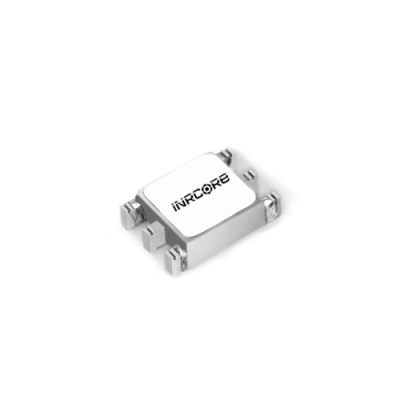

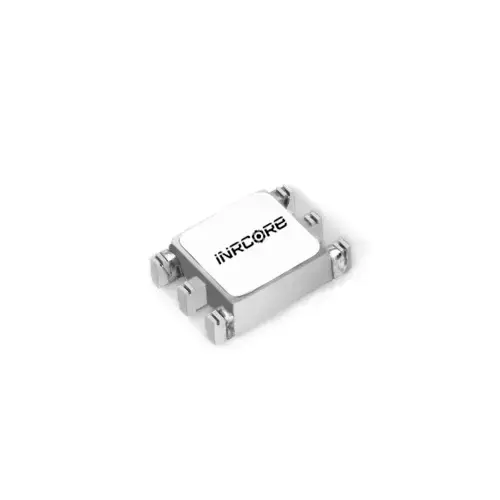

SMT Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL1903T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 0.48 g
Dimensions 11.68 × 8.64 × 4.06 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1:01

Isolation Voltage

1500

DCR MAX (mΩ) Primary

0.88

DCR MAX (mΩ) Secondary

0.62

Primary Inductance (µH)

75000%

Leakage Inductance MAX (μH)

0.75

Voltage-time Product (V*uSec)

15.4

Operating Frequency (MHz)

50kHz+

Moisture Sensitivity Level

3

Operating Temperature

-40°C to +130°C

Finish

Tin/Lead (Sn63/Pb37)

Packaging

Bulk

RoHS Compliant

No

Qualified Products List

No

Height (mm)

4.06

This SMT Gate Drive Transformer offers reliable performance for power applications, featuring a 1:01 turns ratio, 1500V isolation, and operating temperatures from -40°C to +130°C. With a primary inductance of 750µH and a low leakage inductance of 0.75µH, it is designed for efficient high-frequency operation (50kHz+) and provides a voltage-time product of 15.4 V*µSec.

NOTE: Data/Specifications are subject to change without notice.
