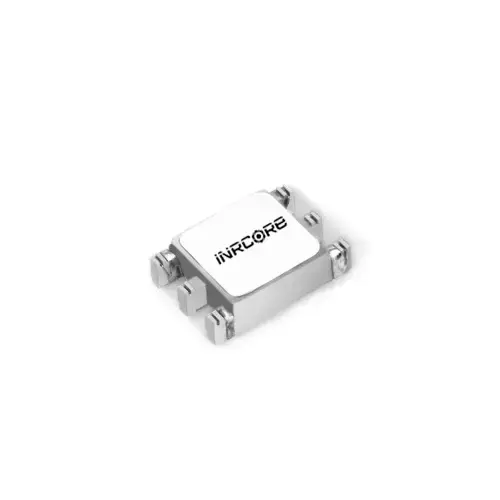

PL1960NL

SMT Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL1960NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 0.28 g
Dimensions 8.64 × 6.73 × 3.56 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1:01

ET (Volt-μsec)

9.7

Primary Inductance (µH)

785

Leakage Inductance MAX (μH)

0.46

DCR MAX (mΩ) Primary

600

DCR MAX (mΩ) Secondary

600

Moisture Sensitivity Level

1

Operating Temperature

-40°C to +130°C

Storage Temperature

-40°C to +130°C

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Qualified Products List

No

Height (mm)

3.56

The PL1960NL SMT Gate Drive Transformer is a reliable power component engineered for surface mount applications, featuring a turns ratio of 1:01 and a primary inductance of 785 µH. Its robust design allows for operation in challenging environments, with an operating temperature range of -40°C to +130°C, ensuring stable performance in diverse conditions. The transformer is RoHS compliant and designed for bulk packaging, offering a practical solution for integration into various electronic systems.

NOTE: Data/Specifications are subject to change without notice.
