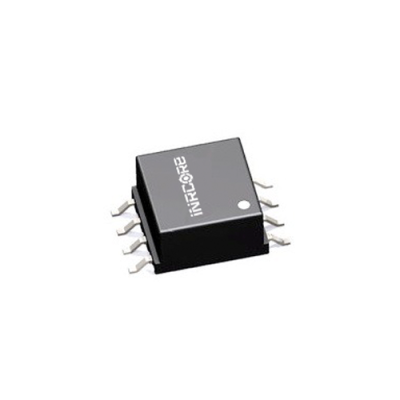

PL2064NL

Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL2064NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 1.35 g
Dimensions 11.81 × 10.8 × 6.86 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1:2.5:2.5

Inductance (µH)

162

Leakage Inductance MAX (μH)

0.24

Voltage-time Product (V*uSec)

11.2

DCR MAX (mΩ) Primary

280

DCR MAX (mΩ) Secondary

560

DWV (Vrms)

3750

Operating Temperature

-40°C to +130°C

Storage Temperature

-40°C to +130°C

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Qualified Products List

No

Height (mm)

6.86

The PL2064NL gate drive transformer offers reliable performance with its SMT mounting and toroid construction, providing a 1:2.5:2.5 turns ratio, 162 µH inductance, and a low 0.24 µH maximum leakage inductance. It supports a voltage-time product of 11.2 V*µSec and a high DWV of 3750 Vrms, ensuring robust operation across an operating temperature range of -40°C to +130°C.

NOTE: Data/Specifications are subject to change without notice.
