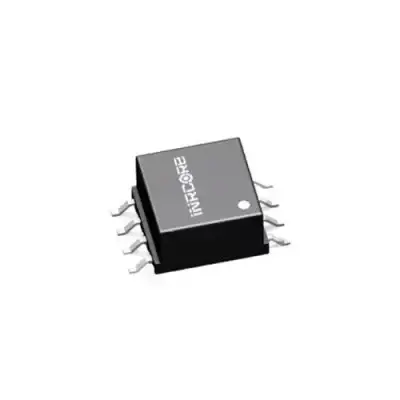

PL2064NLT

Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL2064NLTT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 1.35 g
Dimensions 11.81 × 10.8 × 6.86 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1:2.5:2.5

Inductance (µH)

162

Leakage Inductance MAX (μH)

0.24

Voltage-time Product (V*uSec)

11.2

DCR MAX (mΩ) Primary

280

DCR MAX (mΩ) Secondary

560

DWV (Vrms)

3750

Operating Temperature

-40°C to +130°C

Storage Temperature

-40°C to +130°C

Finish

Sn100

Packaging

T&R

RoHS Compliant

Yes

Qualified Products List

No

Height (mm)

6.86

The PL2064NLT gate drive transformer offers a compact SMT solution for power applications. It features a 1:2.5:2.5 turns ratio, 162µH inductance, and a 3750Vrms DWV, ensuring reliable performance within a -40°C to +130°C operating temperature range. This transformer is designed for efficiency and durability.
