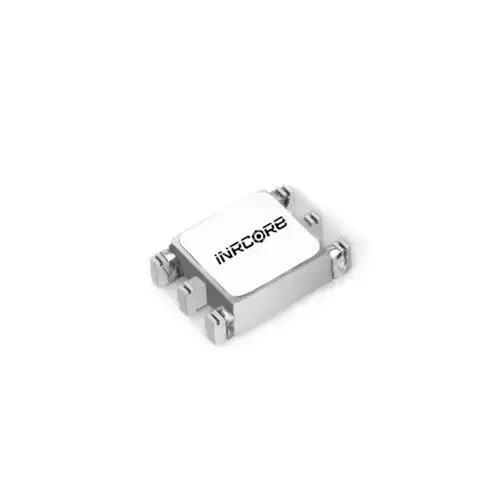

PL2073

SMT Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL2073T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 0.23 g
Dimensions 8.64 × 6.73 × 3.56 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1:01:01

Isolation Voltage

1500

DCR MAX (mΩ) Primary

0.85

DCR MAX (mΩ) Secondary

0.85

Primary Inductance (µH)

43700%

Leakage Inductance MAX (μH)

0.85

Voltage-time Product (V*uSec)

20

Moisture Sensitivity Level

3

Operating Temperature

-55°C to +125°C

Storage Temperature

-55°C to +125°C

Finish

Tin/Lead (Sn63/Pb37)

Packaging

Bulk

RoHS Compliant

No

Qualified Products List

No

Height (mm)

3.56

The SMT Gate Drive Transformer, with its compact design and SMT Toroid construction, offers efficient performance. It features a 1:01:01 turns ratio, 1500 isolation voltage, and a wide operating temperature range, making it suitable for various applications. The transformer’s design ensures reliable operation in demanding environments.
