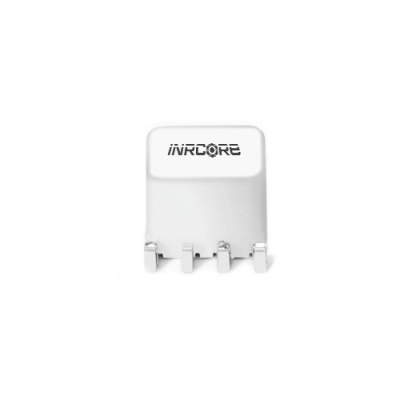

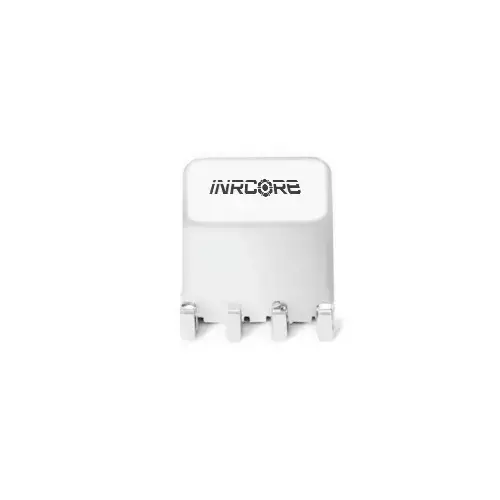

PL2148NL

Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL2148NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 1 g
Dimensions 9.02 × 8.64 × 7.62 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1:01

Isolation Voltage

1500

DCR MAX (mΩ) Primary

1.15

DCR MAX (mΩ) Secondary

1.15

Primary Inductance (µH)

148600%

Leakage Inductance MAX (μH)

0.8

HiPot (VRMS)

1500

Voltage-time Product (V*uSec)

55

Operating Frequency (MHz)

50kHz+

Moisture Sensitivity Level

1

Operating Temperature

-55°C to +125°C

Storage Temperature

-55°C to +125°C

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Qualified Products List

No

Height (mm)

7.62

This gate drive transformer offers reliable performance with its SMT toroid construction and 1:01 turns ratio, making it suitable for applications requiring high isolation voltage up to 1500 VRMS. Its robust design is complemented by low DCR MAX for both primary and secondary windings, efficient primary inductance of 1486 µH, and minimal leakage inductance, ensuring stable operation across a broad operating frequency range from 50kHz+ and challenging temperatures from -55°C to +125°C.

NOTE: Data/Specifications are subject to change without notice.
