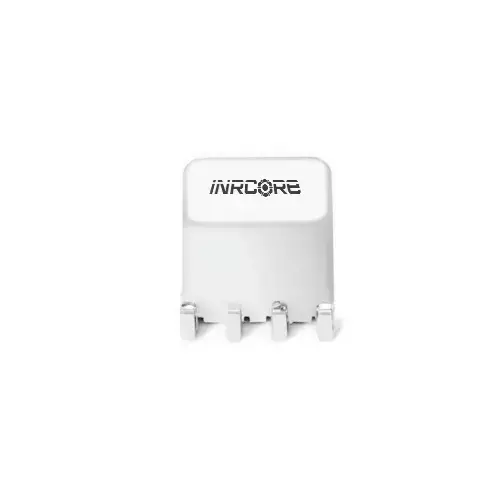

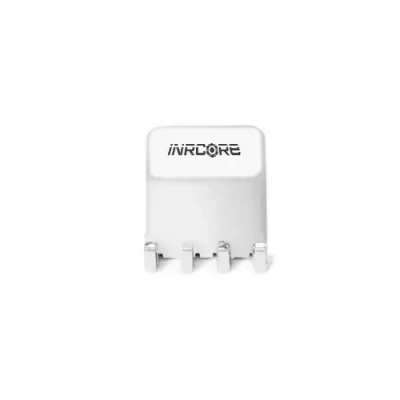

PL2973

Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL2973T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 8.64 × 9.02 × 7.62 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1:01

Isolation Voltage

1500

DCR MAX (mΩ) Primary

0.91

DCR MAX (mΩ) Secondary

0.91

Primary Inductance (µH)

120000%

Leakage Inductance MAX (μH)

0.5

Voltage-time Product (V*uSec)

27.2

Operating Frequency (MHz)

50kHz+

Moisture Sensitivity Level

1

Operating Temperature

-55°C to +125°C

Storage Temperature

-55°C to +125°C

Finish

Tin/Lead (Sn63/Pb37)

Packaging

Bulk

RoHS Compliant

No

Qualified Products List

No

Height (mm)

7.62

This gate drive transformer offers reliable performance with its SMT toroid construction and 1:01 turns ratio, making it suitable for applications requiring 1500V isolation. Its compact design (8.64mm length, 9.02mm width, 7.62mm height) and broad operating temperature range (-55°C to +125°C) ensure robust functionality across diverse environments, further supported by a high primary inductance of 1200µH and a 27.2 V*uSec voltage-time product.

NOTE: Data/Specifications are subject to change without notice.
