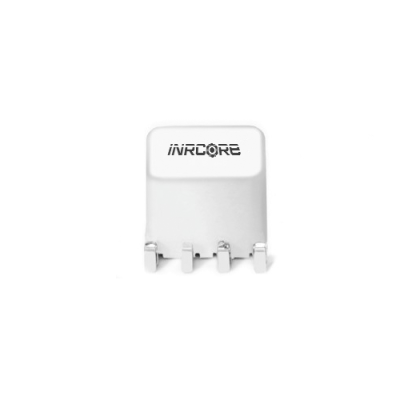

PL3057NL

Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL3057NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 9.02 × 8.64 × 7.62 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

0.4

Isolation Voltage

1500

DCR MAX (mΩ) Primary

910

DCR MAX (mΩ) Secondary

380

Primary Inductance (µH)

120000%

Leakage Inductance MAX (μH)

910

Voltage-time Product (V*uSec)

27.2

Operating Frequency (MHz)

50kHz – 600kHz

Moisture Sensitivity Level

3

Operating Temperature

-40°C to +130°C

Storage Temperature

-40°C to +130°C

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Qualified Products List

No

Height (mm)

7.62

The PL3057NL Gate Drive Transformer is a robust SMT Toroid designed for reliable power applications. It offers a 0.4 turns ratio and a 1500V isolation voltage, ensuring efficient and safe signal transfer. With a broad operating frequency range of 50kHz to 600kHz and an operating temperature range of -40°C to +130°C, this transformer provides consistent performance in demanding environments. Its compact size and RoHS compliance further enhance its utility for various electronic designs.

NOTE: Data/Specifications are subject to change without notice.
