PL3140

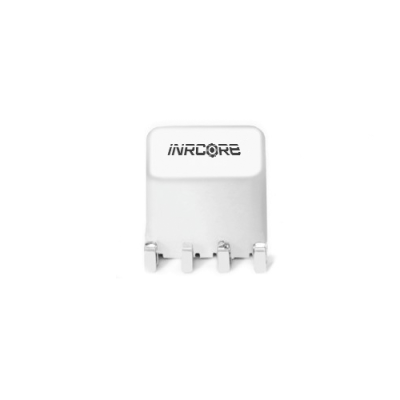

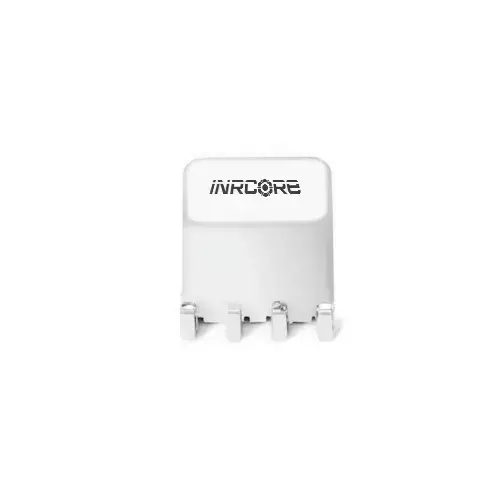

Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL3140T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 9.02 × 8.64 × 7.62 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

2:01:01

Isolation Voltage

1500

DCR MAX (mΩ) Primary

0.91

DCR MAX (mΩ) Secondary

0.46

Primary Inductance (µH)

120000%

Moisture Sensitivity Level

3

Operating Temperature

-40°C to +130°C

Finish

Tin/Lead (Sn63/Pb37)

Packaging

Bulk

RoHS Compliant

No

Qualified Products List

No

Height (mm)

7.62

The PL3140 Gate Drive Transformer offers reliable isolation and signal transfer for power applications, featuring a robust SMT Toroid construction with a 2:01:01 turns ratio and 1500V isolation voltage. Its compact size and broad operating temperature range of -40°C to +130°C make it a suitable component for demanding electronic designs.

NOTE: Data/Specifications are subject to change without notice.
