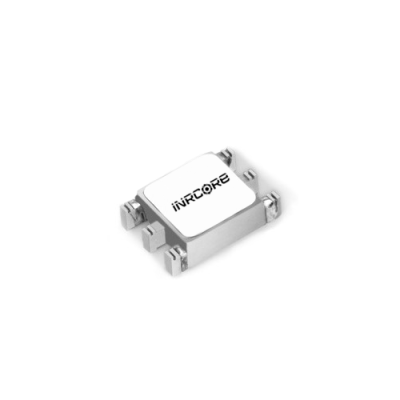

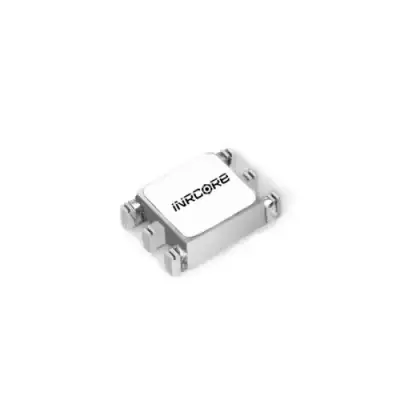

PL3280

Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL3280T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 0.23 g
Dimensions 8.64 × 6.73 × 3.56 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1:01:01

Isolation Voltage

1500

DCR MAX (mΩ) Primary

0.75

DCR MAX (mΩ) Secondary

0.75

Primary Inductance (µH)

114000%

Leakage Inductance MAX (μH)

0.65

Voltage-time Product (V*uSec)

12.7

Operating Frequency (MHz)

50kHz+

Moisture Sensitivity Level

3

Storage Temperature

-55°C to +125°C

Finish

Tin/Lead (Sn63/Pb37)

Packaging

Bulk

RoHS Compliant

No

Qualified Products List

No

Height (mm)

3.56

This Gate Drive Transformer, PL3280, offers reliable signal isolation and efficient power transfer in a compact SMT package. Its robust construction with a 1:1:1 turns ratio, 1500V isolation voltage, and low DCR ensures stable performance. Designed for operating frequencies above 50kHz and offering a voltage-time product of 12.7 V*uSec, this component is suitable for demanding industrial applications requiring precise gate drive control across a wide operating temperature range of -55°C to +125°C.

NOTE: Data/Specifications are subject to change without notice.
