X-1569

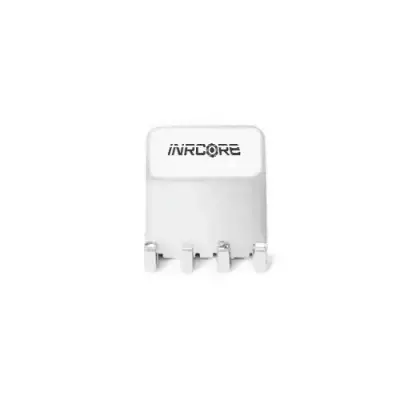

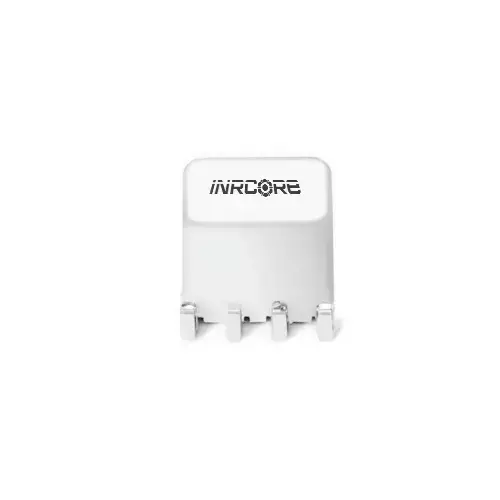

SMT Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. X-1569T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 9.01 × 8.63 × 7.62 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1:01:01

Isolation Voltage

1500

DCR MAX (mΩ) Primary

1.6

DCR MAX (mΩ) Secondary

1.6

Primary Inductance (µH)

3300

Leakage Inductance MAX (μH)

0.7

Voltage-time Product (V*uSec)

45.1

Operating Frequency (MHz)

50kHz+

DWV (VDC)

1500

Moisture Sensitivity Level

3

Operating Temperature

-55°C to +130°C

Finish

Tin/Lead (Sn63/Pb37)

Packaging

Bulk

RoHS Compliant

No

Qualified Products List

No

Height (mm)

7.62

This SMT Gate Drive Transformer (X-1569) offers reliable performance with a 1:01:01 turns ratio, 1500V isolation, and low DCR. Its compact design (9.01mm length, 8.63mm width, 7.62mm height) and wide operating temperature range (-55°C to +130°C) make it suitable for demanding power applications requiring efficient signal transfer and robust electrical isolation, operating effectively at frequencies beyond 50kHz.

NOTE: Data/Specifications are subject to change without notice.
