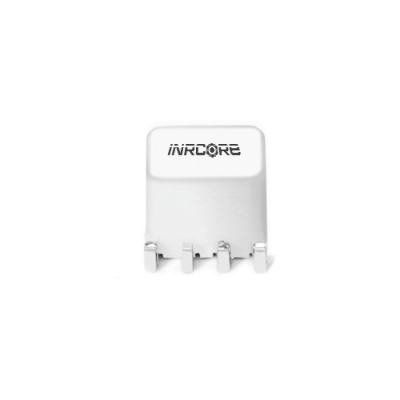

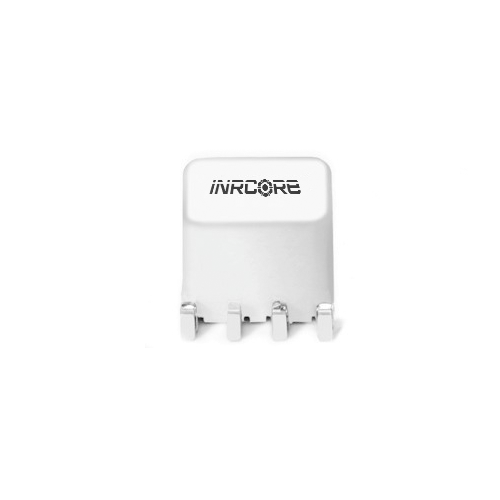

X-1569NL

SMT Gate Drive Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. X-1569NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 9.01 × 8.63 × 7.62 mm
Mounting

SMT

Construction Type

SMT Toroid

Turns Ratio

1:01:01

Isolation Voltage

1500

DCR MAX (mΩ) Primary

1.6

DCR MAX (mΩ) Secondary

1.6

Primary Inductance (µH)

3300

Leakage Inductance MAX (μH)

0.7

Voltage-time Product (V*uSec)

45.1

Operating Frequency (MHz)

50kHz+

DWV (VDC)

1500

Moisture Sensitivity Level

3

Operating Temperature

-55°C to +130°C

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Qualified Products List

No

Height (mm)

7.62

This SMT Gate Drive Transformer offers reliable performance for power applications with its robust SMT Toroid construction, 1:01:01 turns ratio, and 1500V isolation voltage. Designed for efficient operation at frequencies above 50kHz, it features low DCR MAX (1.6mΩ) for both primary and secondary windings, a primary inductance of 3300µH, and a low leakage inductance of 0.7µH, ensuring stable and consistent power delivery. With a voltage-time product of 45.1 V*uSec and a wide operating temperature range of -55°C to +130°C, it is a suitable component for demanding electronic designs.

NOTE: Data/Specifications are subject to change without notice.
