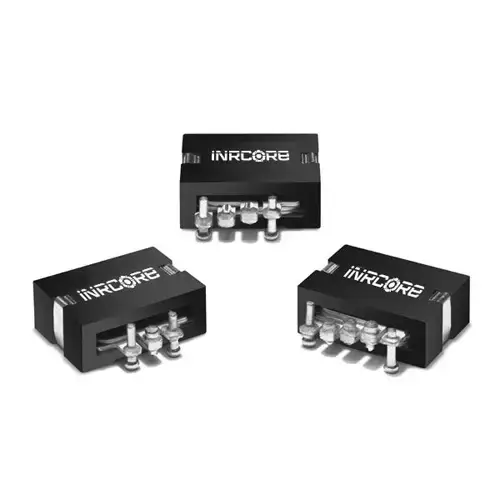

2-Turn, Low-Loss, High Frequency Planar Transformer
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Weight | 10.8 g |
|---|---|
| Dimensions | 19.81 × 19.56 × 7.37 mm |
| Mounting | SMT |
| Inductance (µH) | 0.85 |
| Rated Current (A) | 39 |
| DCR TYP (mΩ) | 0.38 |
| DCR MAX (mΩ) | 0.48 |
| Saturation Current TYP (A) | 37, 46 |
| Heating Current (A) | 73 |
| Rated Power (W) | 300 |
| Isolation Voltage | 1750 |
| Moisture Sensitivity Level | 1 |
| Operating Temperature | -40°C to +130°C |
| Finish | Tin/Lead (Sn63/Pb37) |
| Packaging | Bulk |
| RoHS Compliant | No |
| Tolerance | ±15% |
| Features | High Frequency |
The PL10102 is a 2-Turn, Low-Loss, High-Frequency Planar Transformer from iNRCORE. This inductor offers a balance of performance and efficiency, with a focus on high-frequency applications. It features a compact design with a weight of 10.8g and dimensions of 19.81mm x 19.56mm x 7.37mm. Key specifications include an inductance of 0.85 µH, a rated current of 39A, and a rated power of 300W, making it suitable for various power applications. The transformer is designed for SMT mounting and is RoHS compliant.
NOTE: Data/Specifications are subject to change without notice.
