High Frequency Planar Transformer
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Dimensions | 29.46 × 25.4 × 9.1 mm |
|---|---|
| Mounting | SMT |
| Construction Type | SINGLE INTERLEAVE DESIGN |
| Turns Ratio | 6TPri:2TAux:4TSec |
| DCR MAX (mΩ) Primary | 21 |
| DCR MAX (mΩ) Secondary | 4.5 |
| Primary Inductance (µH) | 120 |
| Rated Power (W) | 250 |
| Isolation Voltage | 1750 |
| Frequency Range (MHz) | 200kHz – 700kHz |
| Operating Temperature | -40°C to +130°C |
| Finish | Sn100 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Features | High Frequency |

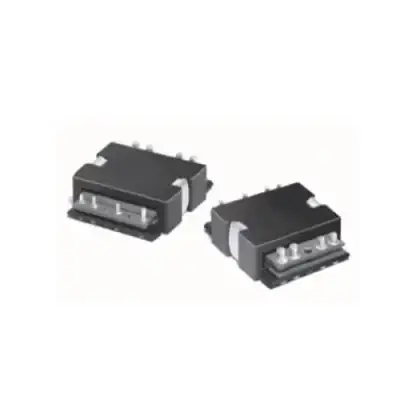

The High Frequency Planar Transformer (PL10232NL) from iNRCORE offers a compact, SMT-mountable solution for power applications. Designed with a SINGLE INTERLEAVE DESIGN and a turns ratio of 6TPri:2TAux:4TSec, this transformer operates within a frequency range of 200kHz – 700kHz. It features a primary inductance of 120µH and a rated power of 250W, and it is built to withstand operating temperatures from -40°C to +130°C. With RoHS compliance and a bulk packaging, the PL10232NL is a reliable component.
NOTE: Data/Specifications are subject to change without notice.
