PL10308

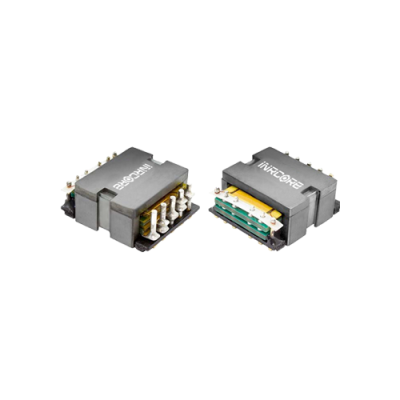

High Frequency Planar Transformer

PL10308
Datasheet
For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL10308T.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 23.37 × 21.6 × 8.6 mm
Mounting

SMT
Construction Type

SMT ER19 PLANAR
Turns Ratio

5TPri:5TPri:1TSec:1TSec
Primary Inductance (µH)

240
Leakage Inductance MAX (μH)

0.55
DCR MAX (mΩ) Primary

00, 1, 19
DCR MAX (mΩ) Secondary

20
Rated Power (W)

140
Isolation Voltage

1750
Frequency Range (MHz)

200kHz – 700kHz
Moisture Sensitivity Level

1
Operating Temperature

-55°C to +125°C
Storage Temperature

-55°C to +125°C
Finish

Tin/Lead (Sn90/Pb10)
Packaging

Bulk
RoHS Compliant

No
Features

High Frequency

The PL10308 High Frequency Planar Transformer, manufactured by iNRCORE, offers exceptional performance in a compact SMT package. This transformer is engineered for high-frequency applications, providing reliable power conversion with a wide frequency range of 200kHz to 700kHz. Its design includes features like a turns ratio of 5TPri:5TPri:1TSec:1TSec, low leakage inductance, and a rated power of 140W, making it ideal for applications where efficiency and space are critical.

NOTE: Data/Specifications are subject to change without notice.
