PL10402NL

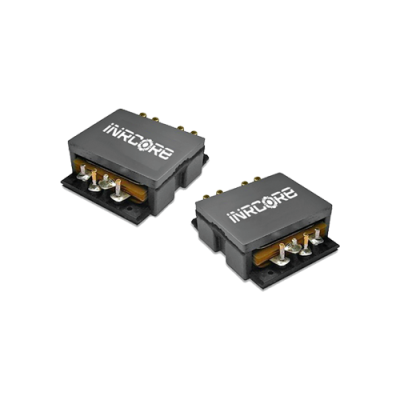

High Frequency Flat Coil Planar Transformer

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL10402NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Weight 19.8 g
Dimensions 29.46 × 26.67 × 10.4 mm
Mounting

SMT

Turns Ratio

5TPri:5TPri:4TSec

DCR MAX (mΩ) Primary

8.5

DCR MAX (mΩ) Secondary

4.5

Primary Inductance (µH)

330

Rated Current (A)

73

Leakage Inductance MAX (μH)

0.45

Rated Power (W)

300

Isolation Voltage

1750

Frequency Range (MHz)

200kHz – 700kHz

Moisture Sensitivity Level

1

Operating Temperature

-40°C to +125°C

Storage Temperature

-40°C to +125°C

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Features

High Frequency

The High Frequency Flat Coil Planar Transformer (PL10402NL) from iNRCORE is designed for power applications, offering efficient performance within a 200kHz – 700kHz frequency range. Its SMT mounting and compact design, with dimensions of 29.46mm x 26.67mm x 10.4mm, make it suitable for various systems. The transformer features a 300W rated power, 73A rated current, and 1750V isolation voltage, ensuring reliable operation.
