High Frequency Planar Transformer
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Dimensions | 29.46 × 25.4 × 10.2 mm |
|---|---|
| Mounting | SMT |
| Turns Ratio | 7TPri:7TPri:1TSec:1TSec |
| DCR MAX (mΩ) Primary | 50 |
| DCR MAX (mΩ) Secondary | 0.56 |
| Primary Inductance (µH) | 660 |
| Leakage Inductance MAX (μH) | 0.45 |
| Rated Power (W) | 2.50E+02 |
| Frequency Range (MHz) | 200kHz – 700kHz |
| Operating Temperature | -40°C to +125°C |
| Finish | Sn100 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Grade | Industrial |
| Features | High Frequency |

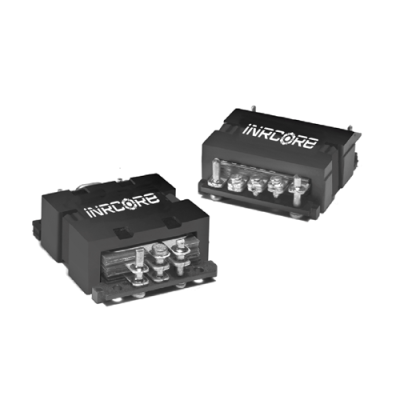

The High Frequency Planar Transformer (R8214NL) from iNRCORE provides reliable performance in a compact SMT package. Designed for power applications, this transformer offers a 7TPri:7TPri:1TSec:1TSec turns ratio, a 200kHz – 700kHz frequency range, and an industrial grade operating temperature of -40°C to +125°C. Its features include a high frequency and bulk packaging, making it a suitable choice for various industrial applications.
NOTE: Data/Specifications are subject to change without notice.
