High Frequency Planar Transformer
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Dimensions | 23.37 × 21.59 × 8.6 mm |
|---|---|
| Mounting | SMT |
| Turns Ratio | 5TPri:5TAux:4TSec |
| DCR MAX (mΩ) Primary | 20 |
| DCR MAX (mΩ) Secondary | 7 |
| Primary Inductance (µH) | 240 |
| Leakage Inductance MAX (μH) | 0.55 |
| Rated Power (W) | 1.40E+02 |
| Frequency Range (MHz) | 200kHz – 700kHz |
| Moisture Sensitivity Level | 1 |
| Operating Temperature | -40°C to +125°C |
| Finish | Sn100 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Grade | Industrial |
| Features | High Frequency |

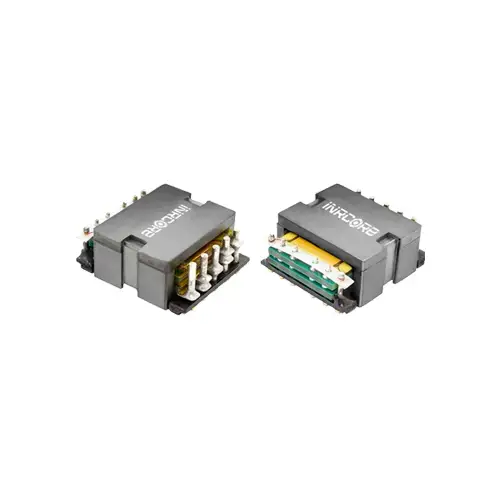

The High Frequency Planar Transformer (R8303NL) from iNRCORE offers efficient power conversion in a compact design. With a turns ratio of 5TPri:5TAux:4TSec and a frequency range of 200kHz – 700kHz, this transformer is suitable for a variety of applications. The SMT mounting and RoHS compliance provide ease of use and environmental consideration, respectively.
NOTE: Data/Specifications are subject to change without notice.
