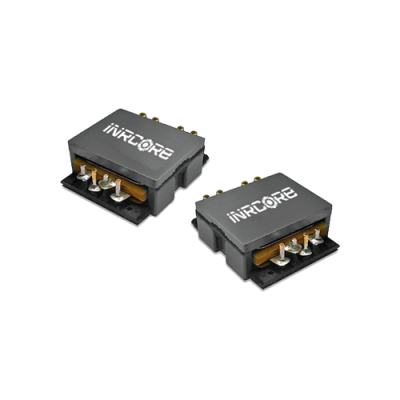

High Frequency Flat Coil Planar Transformer
Note: not all products have a Tape and Reel option. Please check datasheet for availability.
| Dimensions | 29.46 × 26.67 × 11.9 mm |
|---|---|
| Mounting | SMT |
| Turns Ratio | 8TPri:8TPri:4TSec |
| DCR MAX (mΩ) Primary | 13.4 |
| DCR MAX (mΩ) Secondary | 4.5 |
| Primary Inductance (µH) | 768 |
| Leakage Inductance MAX (μH) | 1.2 |
| Rated Power (W) | 3.00E+02 |
| Frequency Range (MHz) | 200kHz – 700kHz |
| Moisture Sensitivity Level | 1 |
| Operating Temperature | -40°C to +125°C |
| Finish | Sn100 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Grade | Industrial |
| Features | High Frequency |
This high-frequency flat coil planar transformer, with a compact size of 29.46mm length, 26.67mm width, and 11.9mm height, is designed for efficient power conversion. It features a turns ratio of 8TPri:8TPri:4TSec and a primary inductance of 768 µH, operating effectively within a frequency range of 200kHz to 700kHz. Its robust design is suitable for industrial applications, maintaining performance across an operating temperature range of -40°C to +125°C, making it a reliable component for demanding power management systems.
NOTE: Data/Specifications are subject to change without notice.
