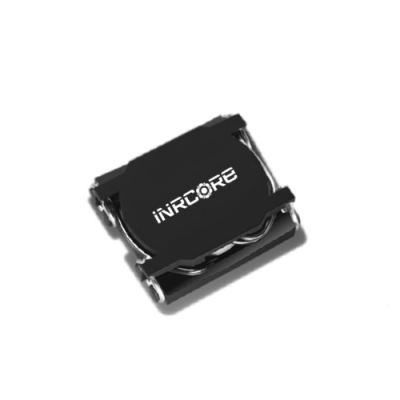

PL1434NL

SMT Power Inductor – SLIC Series

For Tape & Reel packaging, add “T” suffix at the end of the part number: i.e. PL1434NLT.

Note: not all products have a Tape and Reel option. Please check datasheet for availability.

Dimensions 17.78 × 17.02 × 9.91 mm
Mounting

SMT

Construction Type

SHLD DRUM CORE

DCR (mohms)

15.895

Inductance (µH)

9.3

Core Loss Factor

4.52E-10

Rated Current (A)

7.2

Operating Temperature

-40°C to +130°C

Finish

Sn100

Packaging

Bulk

RoHS Compliant

Yes

Height (mm)

9.91

This SMT power inductor from the SLIC Series offers reliable power conversion with a shielded drum core construction, ensuring stable performance across a wide operating temperature range of -40°C to +130°C. Its compact design and RoHS compliance make it a suitable component for various power management applications, providing efficient inductance and robust current handling capabilities.

NOTE: Data/Specifications are subject to change without notice.
